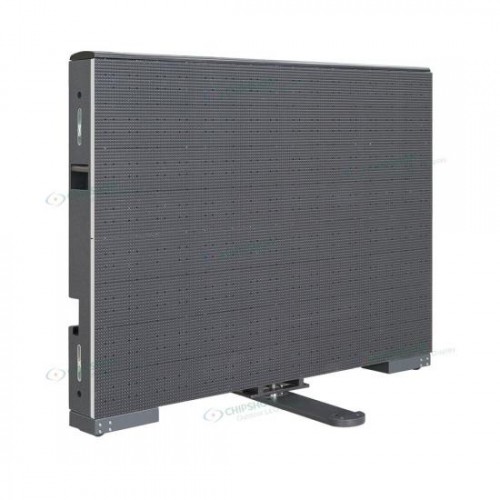

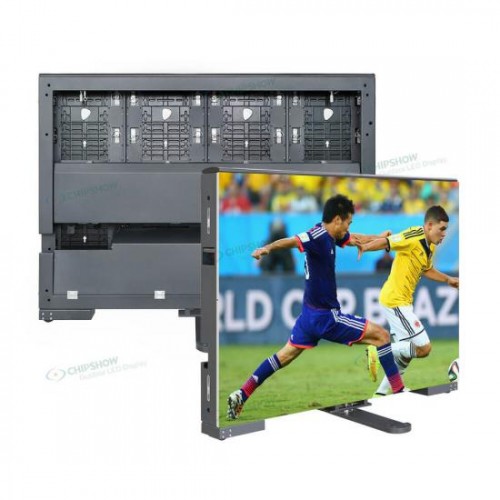

C-Sport P8 Professional Stadium LED Screen
C-Sport is a professional stadium perimeter LED screen.
Features
1. The new stadium base design, with a 90-degree upright non-adjustable support frame and casters at the bottom of the cabinet ensures the viewing angle of the audience.
2. Soft mask protection, athletes and LED screen are perfectly protected.
3. The cabinet is designed with cast aluminum, which is light and thin and has good heat dissipation, slows down the aging of the power and module.
4. The module can be maintained efficiently, and the operation is simple and convenient.
5. High protection grade, protection grade≥IP65.
6. Strong compatibility, it can be used as a stadium or rental screen to meet the diversified needs of customers on multiple occasions.
7. Energy saving, about 1/3 energy saving than traditional screen, greatly reducing the operating cost of the screen.
8. Professional stadium playing software, diversified input of camera video sources, support DP, HDMD, VGA, SDL, DVD, etc.
Item No.:
C-Sport

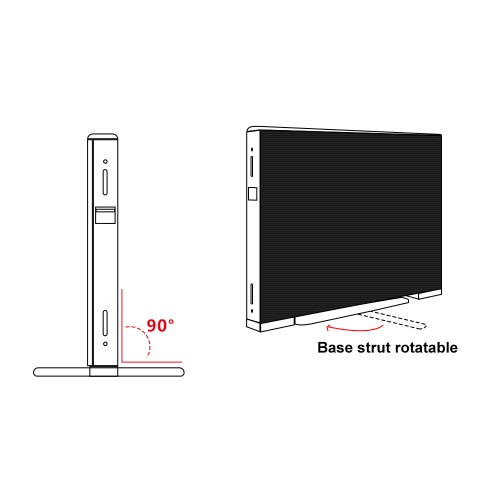

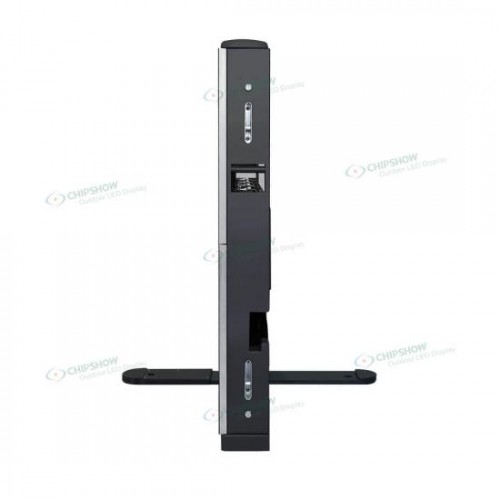

90-degree upright
The new stadium base design, with a 90-degree upright non-adjustable support frame and casters at the bottom of the cabinet ensures the viewing angle of the audience
Energy saving 1/3
about 1/3 energy saving than traditional screen, greatly reducing the operating cost of the screen
Soft mask protection
Soft mask protection, athletes and LED screen are perfectly protected

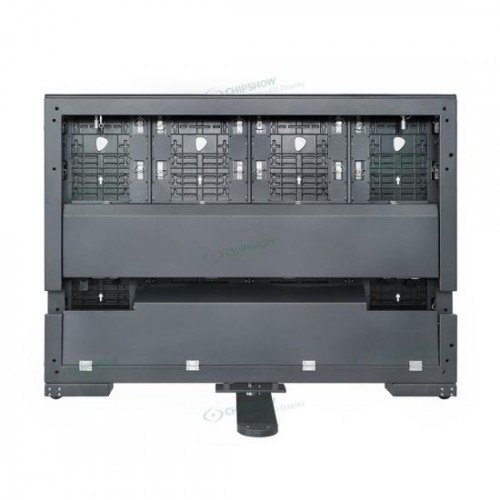

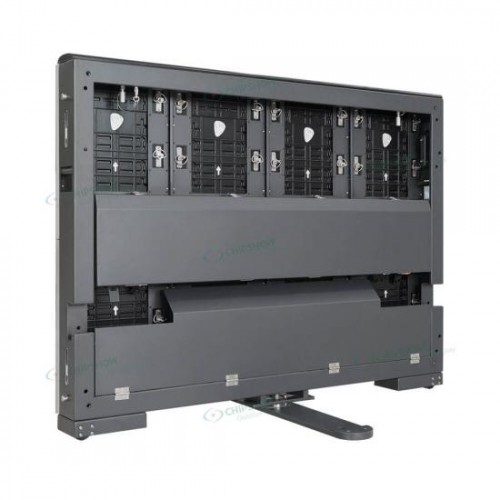

Front maintenance
The module can be maintained efficiently, and the operation is simple and convenient
IP65 waterproof rating
High protection grade, protection grade≥IP65
Surprising design
Specifications
Product
C-Sport
Pixel Pitch
8mm
Pixel LED
SMD2727 Module size
320*450mm
Cabinet size
1280*900*120mm
Cabinet weight
42kg Brightness
5800nits
Maximal power ≤977w/㎡
Average power
≤293w/㎡
Color temperature
6000~8000K
Working temperature
-20~50℃
IP rating
IP65
C-Sport is a professional stadium perimeter LED screen.
Features
1. The new stadium base design, with a 90-degree upright non-adjustable support frame and casters at the bottom of the cabinet ensures the viewing angle of the audience.
2. Soft mask protection, athletes and LED screen are perfectly protected.
3. The cabinet is designed with cast aluminum, which is light and thin and has good heat dissipation, slows down the aging of the power and module.
4. The module can be maintained efficiently, and the operation is simple and convenient.
5. High protection grade, protection grade≥IP65.
6. Strong compatibility, it can be used as a stadium or rental screen to meet the diversified needs of customers on multiple occasions.
7. Energy saving, about 1/3 energy saving than traditional screen, greatly reducing the operating cost of the screen.
8. Professional stadium playing software, diversified input of camera video sources, support DP, HDMD, VGA, SDL, DVD, etc.
Item No.:
C-Sport
90-degree upright
The new stadium base design, with a 90-degree upright non-adjustable support frame and casters at the bottom of the cabinet ensures the viewing angle of the audience
Energy saving 1/3
about 1/3 energy saving than traditional screen, greatly reducing the operating cost of the screen
Soft mask protection
Soft mask protection, athletes and LED screen are perfectly protected
Front maintenance
The module can be maintained efficiently, and the operation is simple and convenient
IP65 waterproof rating
High protection grade, protection grade≥IP65
Surprising design
Specifications
Product | C-Sport | |||
Pixel Pitch | 8mm | |||
Pixel LED | SMD2727 | |||
Module size | 320*450mm | |||
Cabinet size | 1280*900*120mm | |||
Cabinet weight | 42kg | |||
Brightness | 5800nits | |||
| Maximal power | ≤977w/㎡ | |||
Average power | ≤293w/㎡ | |||
Color temperature | 6000~8000K | |||
Working temperature | -20~50℃ | |||
IP rating | IP65 | |||
