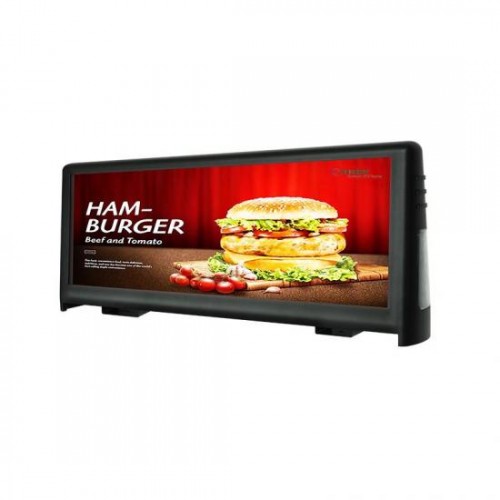

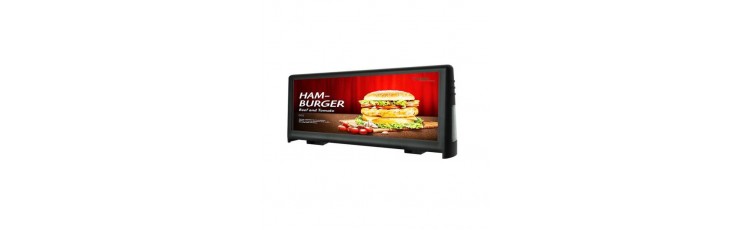

C-Special P3.07 Car Roof Full Color LED Screen

Features

1. The shell is made of cast aluminum and transparent board, and it is installed in an inverted style, which has good rainproof effect;

2. The exterior of the screen adopts a bright surface spraying process, which can be well matched with the car paint;

3. There is a hole at the bottom of the screen for installation with the roof bracket for easy installation;

4. Using DC to DC wide voltage 9 to 36 volt power supply, which can be used by almost all cars;

5. The screen body comes with a delayed start-up function, which does not affect the start of the car;

6. Accurate and efficient with Global GPS fixed-point placement;

7. Wireless control with mobile phone and pad, and the operation interface is simple and practical;

8. Real-time monitoring of the screen;

9. Full color cloud sending Android system architecture, Full Netcom 4G communication;

10. Ali Cloud in-vehicle TAXI_HUB dedicated platform service escorts you in-vehicle interconnection;

11. Standard WiFi module, support platform hotspot Internet access, car hotspot Internet access；

12. Support third-party APP, platform, microservice docking, safe, efficient and reliable；

13. Traffic trajectory, mileage, advertising log statistics, graphical and intuitive.

• Item No.:

   C-Special

CONTACT US

• Product Details

Product Size

Easy installation

there is a hole at the bottom of the screen for installation with the roof bracket for easy installation

Good waterproof

The shell is made of cast aluminum and transparent board, and it is installed in an inverted style, which has good rainproof effect

System architecture

Fixed-point put into circulation

Accurate and efficient with Global GPS fixed-point placement

Specifications

Product	Car Roof LED Screen
Module
Pixel Pitch	3.076mm
Module Resolution rate	104*52
Module size	320mm*160mm
Pixel color	1R1G1B
Pixel LED	SMD1415
Working voltage	DC4.2V
Driving way	1/13
Cabinet
Material	Cast aluminum
Weight	20kg
Resolution rate	312*104Dots
Size	1089*434*167mm
Module quantity	3*2
Density	105625 Dots/㎡
White balance	4000-4500 CD/㎡
Color temperature	6000K-8000K
View angel	H/V：120°/120°
Non-Flatness	＜0.2mm
Module interval	＜0.2mm
Maximal power/㎡	≤656.3W
Average power/㎡	≤197W
Frame frequency	60Hz
Refresh frequency	3840Hz
Gray grade	13bit
Working temperature	-20~50℃
Protection grade	Front/Back：IP65/IP54
