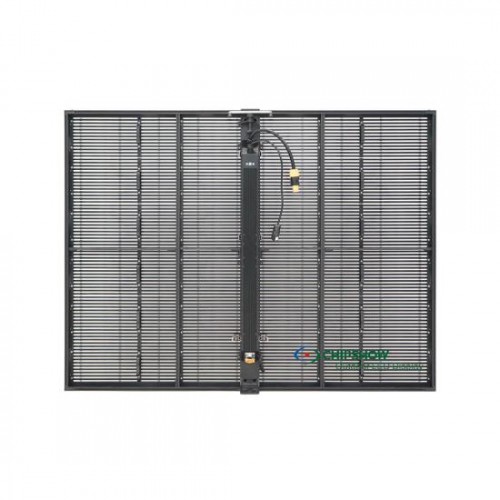

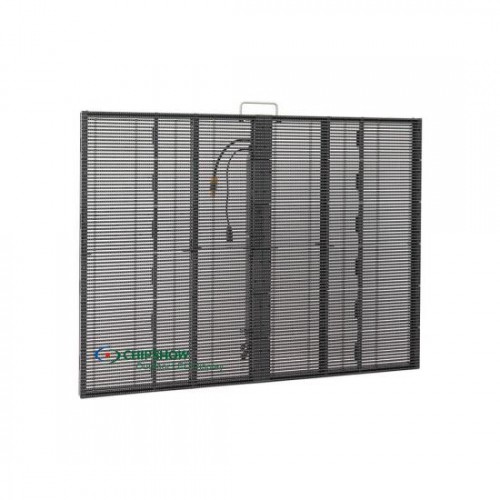

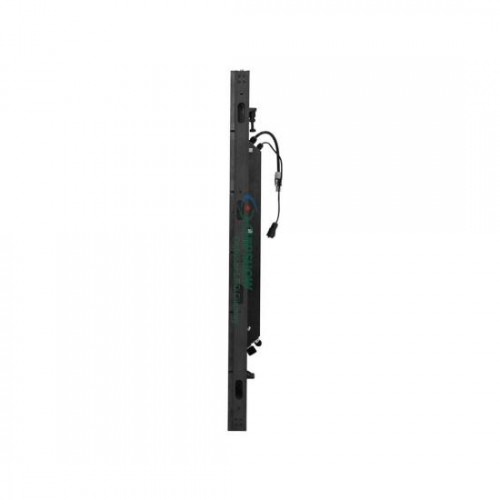

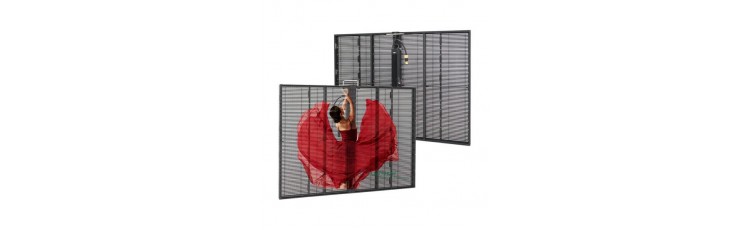

C-Trans P5.35 Outdoor Transparent LED Screen
Outdoor transparent LED display solutions
Features
1. Lightweight
2. Transparency rate≥48%
3. Low wind resistance
4. Front and rear maintenance
5. IP65 protect grade
Applications
shopping malls, terminal, car building, exhibition hall, office building glass curtain wall, etc.
Item No.:
C-Trans

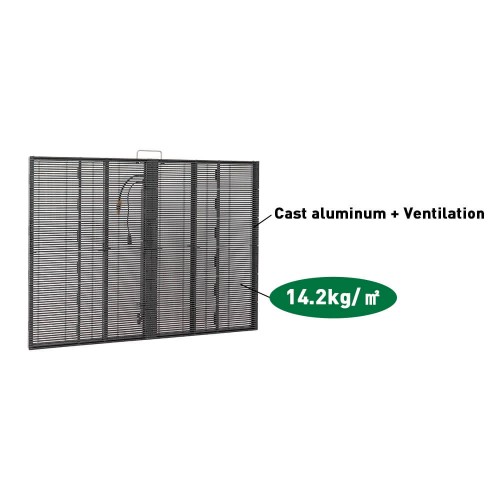

Light weight
The weight of the product is only 14.2kg/m², easy to install and maintain, low cost for supporting structure.

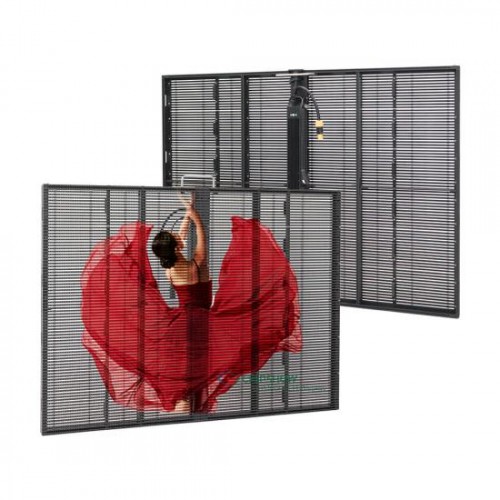

High transparency
Transparency rate≥48%, and do not affect the viewing for outdoor scenery with glass screen
All-weather adaptability
Resistant to low and high temperature, humidity, and other all-weather environment
Low wind resistance
Strong wind directly penetrates of the grille module, greatly saving the cost of steel structure
Front and rear maintenance
The module can be installed and maintained front/rear to improve the adaptability of the product to on-site installation conditions
Specifications
Product
C-trans 5.35
Module
Pixel pitch
5.35*10.71mm
Resolution rate
112*14
Size
600*150*12mm
Pixel color
1R1G1B
Pixel LED
1921
Cabinet
Material
Cast aluminum + profile
Cabinet weight
14.2kg/㎡
Resolution rate
224*84Dots
Size
1200*900*97mm
Module quantity
2*6
Density
17428 Dots/㎡
White balance
4500 CD/㎡
Color temperature
3200K-9300K
View angel
H/V:90°/55°
Transparency
48%
Maximal power
550W/㎡
Average power
180W/㎡
Frame frequency
60Hz
Refresh frequency
3840Hz
Gray grade
14bit
Working temperature
-40~55℃
Protection grade
front/rear: IP65
Outdoor transparent LED display solutions
Features
1. Lightweight
2. Transparency rate≥48%
3. Low wind resistance
4. Front and rear maintenance
5. IP65 protect grade
Applications
shopping malls, terminal, car building, exhibition hall, office building glass curtain wall, etc.
Item No.:
C-Trans
Light weight
The weight of the product is only 14.2kg/m², easy to install and maintain, low cost for supporting structure.
High transparency
Transparency rate≥48%, and do not affect the viewing for outdoor scenery with glass screen
All-weather adaptability
Resistant to low and high temperature, humidity, and other all-weather environment
Low wind resistance
Front and rear maintenance
Specifications
Product | C-trans 5.35 |
Module | |
Pixel pitch | 5.35*10.71mm |
| Resolution rate | 112*14 |
| Size | 600*150*12mm |
| Pixel color | 1R1G1B |
Pixel LED | 1921 |
Cabinet | |
Material | Cast aluminum + profile |
Cabinet weight | 14.2kg/㎡ |
| Resolution rate | 224*84Dots |
Size | 1200*900*97mm |
| Module quantity | 2*6 |
Density | 17428 Dots/㎡ |
White balance | 4500 CD/㎡ |
| Color temperature | 3200K-9300K |
View angel | H/V:90°/55° |
| Transparency | 48% |
| Maximal power | 550W/㎡ |
| Average power | 180W/㎡ |
Frame frequency | 60Hz |
Refresh frequency | 3840Hz |
| Gray grade | 14bit |
Working temperature | -40~55℃ |
| Protection grade | front/rear: IP65 |
