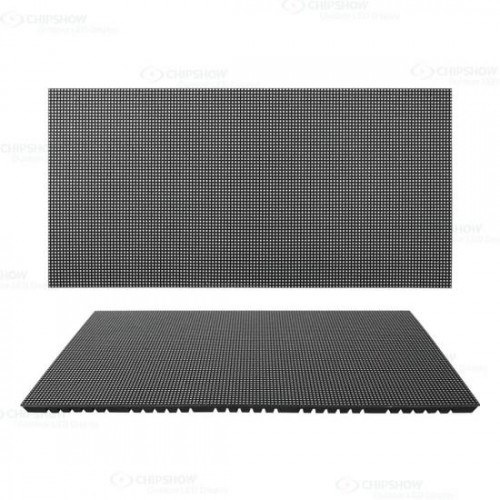

C-Flex P2,2.5,3 Indoor LED Screen

Indoor Flexible LED Display Solutions

Features

1. Light and thin: the weight is 0.28kg and thiness is 9.5mm.

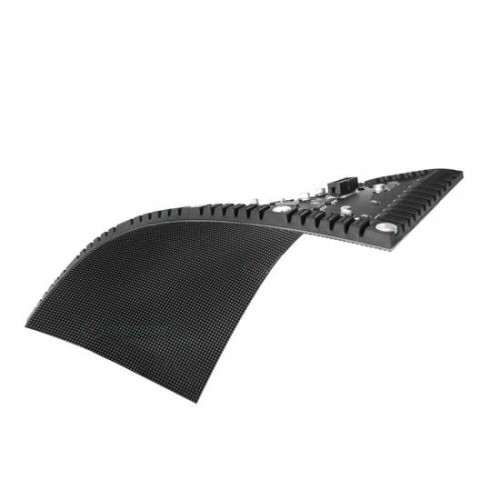

2. Soft: flexible soft PCB board, with a bottom shell made of silicone material.

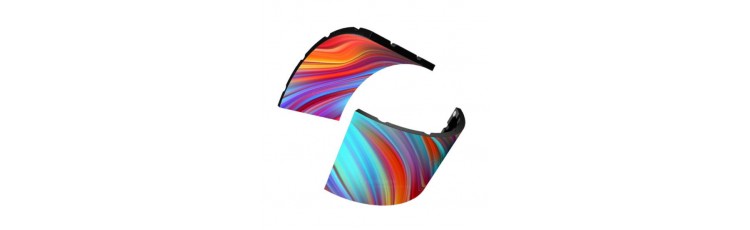

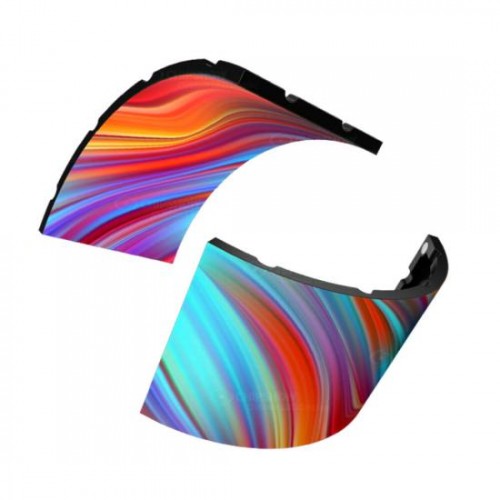

3. Creative shape: It can be bent, folded, wound, suspended, etc., freely combined into various shapes, artistic and creative.

4. Seamless splicing: 360-degree viewing angle, fully showing the streamlined appearance, seamless splicing.

5. High performance: High grayscale, high refresh, more high-definition and energy-saving.

• Item No.:

   C-Flex

CONTACT US

• Product Details

Specifications

Product	C-Flex
Pixel Pitch	2.0mm	2.5mm	3.07mm
Resolution rate	160*80	128*64	104*52
Module size	320*160*9.5mm
Pixel color	1R1G1B
Pixel LED	SMD 1515	SMD 2020	SMD 2020
Module Power	27W	18.5W	26W
Density	250000Dots/㎡	160000 Dots/㎡	105625 Dots/㎡
White balance	≤600 CD/㎡	≤800 CD/㎡	≤800 CD/㎡
Color temperature	6000K-8000K
Non-Flatness	＜0.2mm
Module interval	＜0.2mm
Maximal power/㎡	550W/㎡	360W/㎡	520W/㎡
Average power/㎡	180W/㎡	108W/㎡	173W/㎡
Refresh frequency	1920Hz-3840Hz
Gray grade	14bit
Working temperature	-20~50℃
Protection grade	Front/Back ：IP40/IP40
