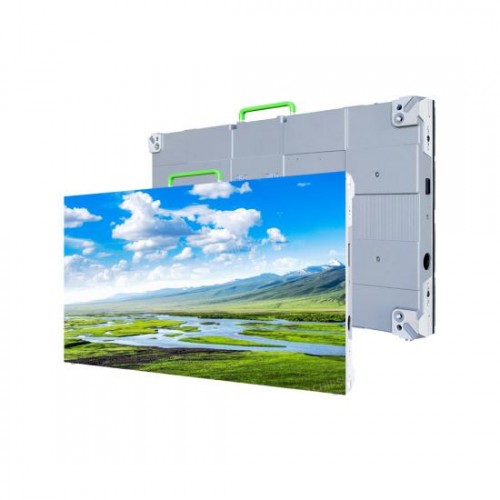

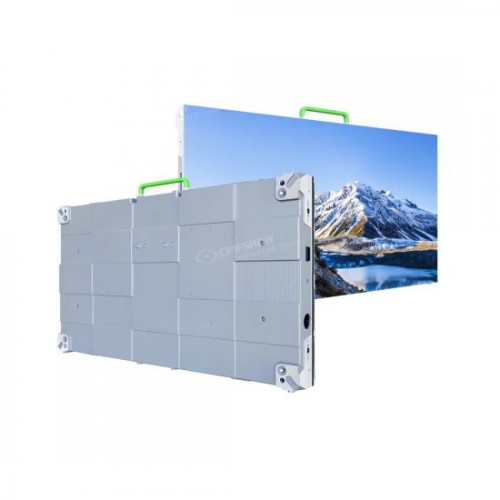

C-Pad-U P0.95,1.26,1.58,1.9 Indoor Commercial LED Video Wall
P0.95,P1.26,P1.58,P1.9 C-Pad-U is quick & easy wall mounting solutions, designed in a perfect 16:9 ratio to get HD 2K 4K LED video wall and camera friendly display.
Features:
• Golden ratio 16:9, cabinet size 608*342mm, 4 cabinets form a 55 inch LED display.
• Magnetically modules and fully front serviceable design, easy installation and maintenance.
• Lightweight tiles design allows it to be easily packed and stacked.
• Internal cabling is all quick release allowing for tool less service.
• 3840Hz refresh rate which eliminates scan lines and flicker in your display on camera.
• 160° horizontal and vertical viewing angle and increased grayscale capabilities.
Application:

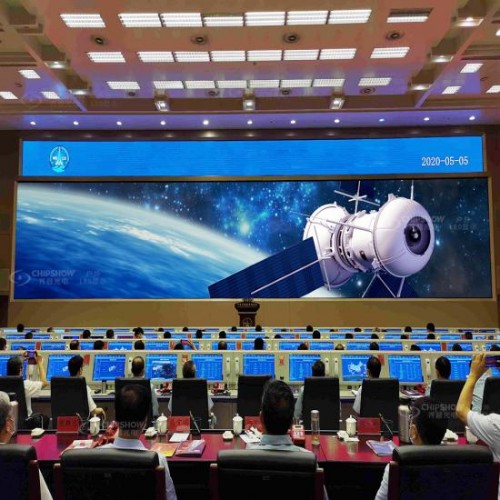

Widely used in auditorium, conference room, banquet hall, secturity monitoring, command system, etc.
Item No.:
C-Pad-U
4:3 and 16:9 Friendly Size Design
According to video size 16:9 and 4:3, the product fit the signal of security monitoring, scheduling command cabinets form a 16:9 size LED display, also compatible with 4:3 video source to satisfy clients requirement.
No need steel frame, Mounted to the wall directly, Same video source as LCD
widely used in auditorium, conference room, banquet hall, traffic, command and monitor system.
Ultra-thin, Ultra-light modules
Modular design for modulesand cabinet, simplify the complex connection, front installation and maintenance. plug and play. military-grade signal connection
3 second front maintenance
Maintenance be dumbed down, save time, labor&money. magnetic front service, 1 second disassemble a module.

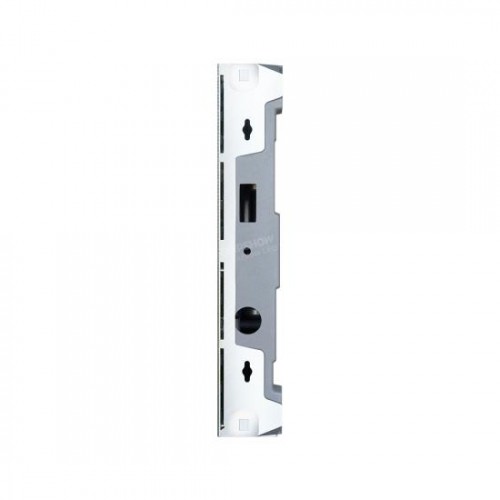

Cabinet Structure Design
Specifications
Products series
C-Pad-U
Pixel Pitch
0.95mm
1.26mm 1.58mm 1.9mm Cabinet Material
Cast aluminum
Cabinet Weight
8kg/Cabinet
Cabinet size
608*342*60mm
Brightness
≥300 nit
≥400 nit
≥500 nit
Color temperature
6000~8000 K
View angel
H：160°, V：160°
Refresh frequency
1920~3840HZ
Gray grade
14bits
Working temperature
-10℃~40℃
Protection grade
Front/Back：IP40
P0.95,P1.26,P1.58,P1.9 C-Pad-U is quick & easy wall mounting solutions, designed in a perfect 16:9 ratio to get HD 2K 4K LED video wall and camera friendly display.
Features:
• Golden ratio 16:9, cabinet size 608*342mm, 4 cabinets form a 55 inch LED display.
• Magnetically modules and fully front serviceable design, easy installation and maintenance.
• Lightweight tiles design allows it to be easily packed and stacked.
• Internal cabling is all quick release allowing for tool less service.
• 3840Hz refresh rate which eliminates scan lines and flicker in your display on camera.
• 160° horizontal and vertical viewing angle and increased grayscale capabilities.
Application:
Widely used in auditorium, conference room, banquet hall, secturity monitoring, command system, etc.
Item No.:
C-Pad-U
4:3 and 16:9 Friendly Size Design
According to video size 16:9 and 4:3, the product fit the signal of security monitoring, scheduling command cabinets form a 16:9 size LED display, also compatible with 4:3 video source to satisfy clients requirement.
No need steel frame, Mounted to the wall directly, Same video source as LCD
widely used in auditorium, conference room, banquet hall, traffic, command and monitor system.
Ultra-thin, Ultra-light modules
Modular design for modulesand cabinet, simplify the complex connection, front installation and maintenance. plug and play. military-grade signal connection
3 second front maintenance
Maintenance be dumbed down, save time, labor&money. magnetic front service, 1 second disassemble a module.
Cabinet Structure Design
Specifications
Products series | C-Pad-U | |||
Pixel Pitch | 0.95mm | 1.26mm | 1.58mm | 1.9mm |
Cabinet Material | Cast aluminum | |||
Cabinet Weight | 8kg/Cabinet | |||
Cabinet size | 608*342*60mm | |||
Brightness | ≥300 nit | ≥400 nit | ≥500 nit | |
Color temperature | 6000~8000 K | |||
View angel | H：160°, V：160° | |||
Refresh frequency | 1920~3840HZ | |||
Gray grade | 14bits | |||
Working temperature | -10℃~40℃ | |||
Protection grade | Front/Back：IP40 | |||

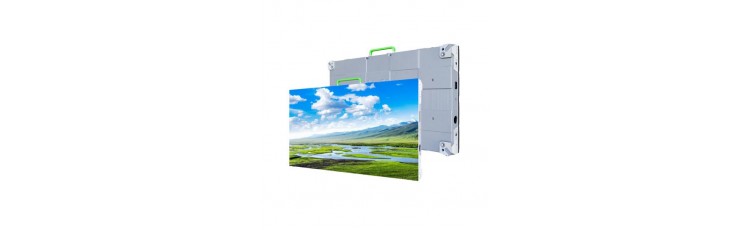

C-Pad-U LED Video Wall
- Product Code: C-Pad-U LED Video Wall
- Availability: In Stock
-
$2,100.00
- Ex Tax: $2,100.00
