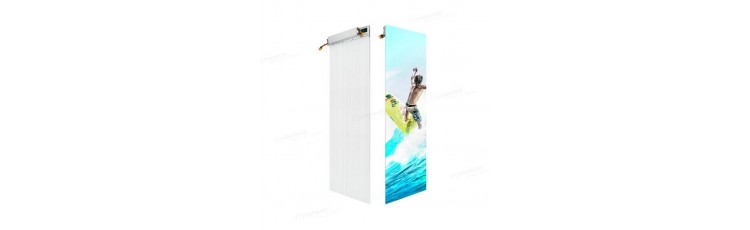

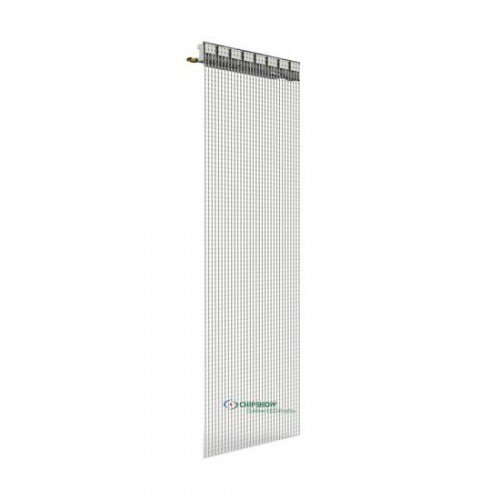

C-Film P8,10 Indoor Transparent LED Screen
With the characteristics of High transparency rate, invisible installation, ultra light & thin, it is very good to help business branding.
Advantages
1. Ultra-light and thin, the transparent part is only 3mm;
2. Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency.
3. The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%.
4. No fan power supply, quiet and noiseless.
5. It can be directly stuck to the glass or hanging installation, quick and worry-free.
6. Hidden design, all cables are stored in the control box, beautiful and generous appearance.
7. The screen can be spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in the other direction.
InstallationDirectly glued to transparent glass or hanging installation
Application
Stage event, shopping mall, chain store, science museum, glass window, glass curtain wall building, leasing industry, New retail, etc.
Item No.:
C-Film
Ultra-light and thin
The weight is 1.7kg, the transparent part is only 3mm
High-end PC materials
Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency
High transparency rate
The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%
Directly stuck to the glass
It can be directly stuck to the glass or hanging installation, quick and worry-free

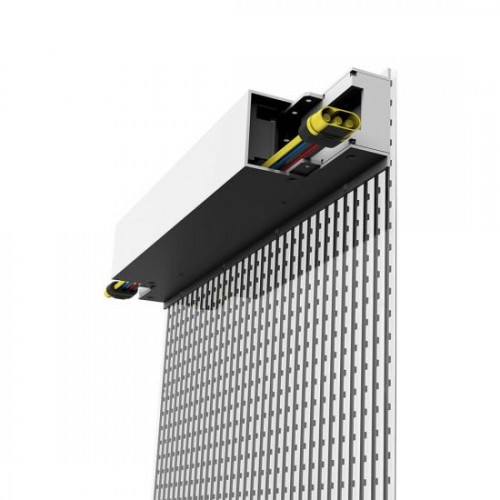

Hidden design
all cables are stored in the control box, beautiful and generous appearance

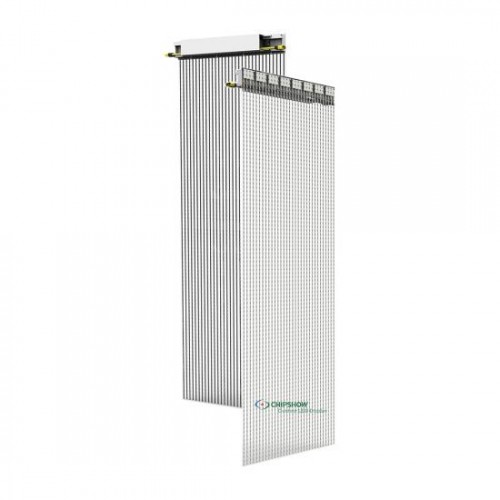

Seamless splicing between screens
The screens are spliced through transparent plate, and the power boxes are spliced through profiles
Spliced left and right or up and down
Spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in other direction
Specifications
Product
C-Flim
Pixel pitch
8, 10mm
Cabinet size
320*960*3mm
Cabinet weight
1.7kg
Brightness
≤3500CD/㎡ Refresh rate
2500 Hz
Max power consumption
≤300W/㎡
Average power consumption
≤100W/㎡
Working temperature
-20～+50℃
Gray grade
16bit Certification
3C, FCC, CE, RoHS, fire test report, etc
With the characteristics of High transparency rate, invisible installation, ultra light & thin, it is very good to help business branding.
Advantages
1. Ultra-light and thin, the transparent part is only 3mm;
2. Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency.
3. The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%.
4. No fan power supply, quiet and noiseless.
5. It can be directly stuck to the glass or hanging installation, quick and worry-free.
6. Hidden design, all cables are stored in the control box, beautiful and generous appearance.
7. The screen can be spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in the other direction.
Installation
Directly glued to transparent glass or hanging installation
Application
Stage event, shopping mall, chain store, science museum, glass window, glass curtain wall building, leasing industry, New retail, etc.
Item No.:
C-Film
Ultra-light and thin
The weight is 1.7kg, the transparent part is only 3mm
High-end PC materials
Using high-end PC materials with high-transparent and high-temperature resistant, good color consistency
High transparency rate
The perfect ultra-narrow design of the light board PCB can easily achieve a transparency rate of up to 60%
Directly stuck to the glass
It can be directly stuck to the glass or hanging installation, quick and worry-free
Hidden design
all cables are stored in the control box, beautiful and generous appearance
Seamless splicing between screens
The screens are spliced through transparent plate, and the power boxes are spliced through profiles
Spliced left and right or up and down
Spliced left and right or up and down, which can achieve a display height or width of 1.92 meters and unlimited splicing in other direction
Specifications
Product | C-Flim |
Pixel pitch | 8, 10mm |
Cabinet size | 320*960*3mm |
Cabinet weight | 1.7kg |
Brightness | ≤3500CD/㎡ |
Refresh rate | 2500 Hz |
Max power consumption | ≤300W/㎡ |
Average power consumption | ≤100W/㎡ |
Working temperature | -20～+50℃ |
Gray grade | 16bit |
Certification | 3C, FCC, CE, RoHS, fire test report, etc |
C-Film LED Screen
- Brand: Chipshow
- Product Code: C-Film LED Screen
- Availability: In Stock
-
$2,100.00
- Ex Tax: $2,100.00
