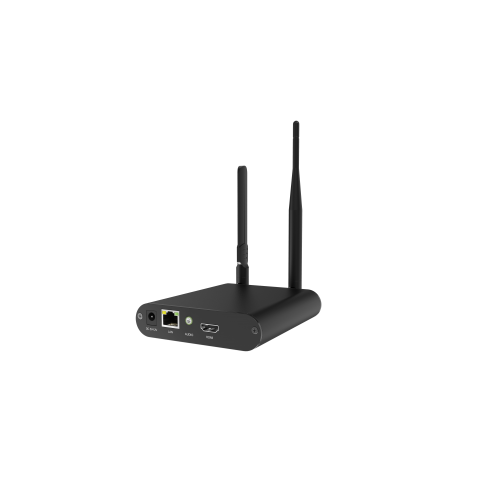

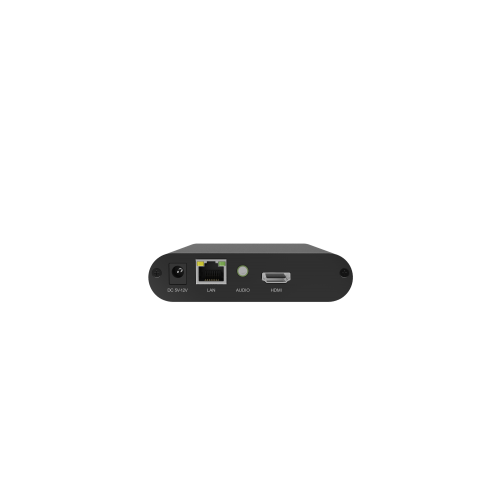

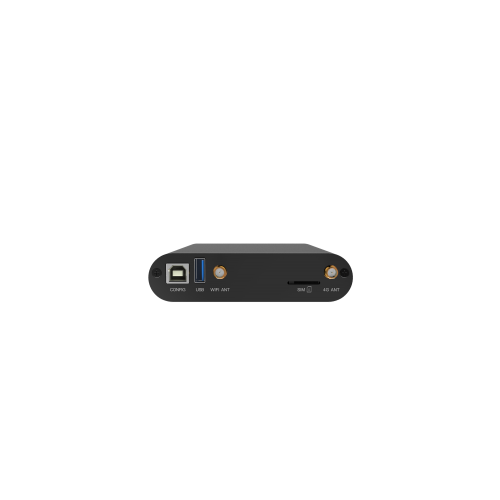

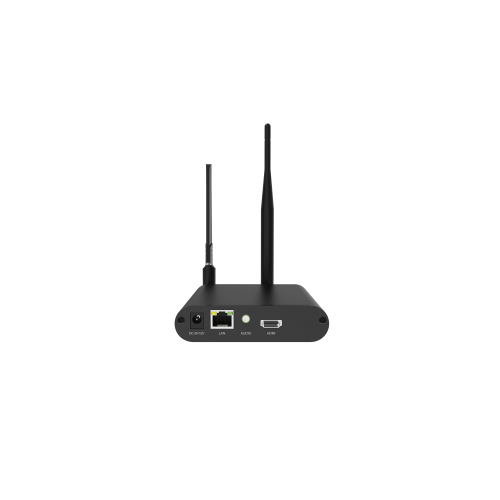

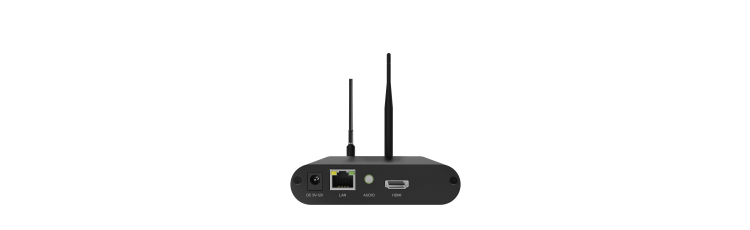

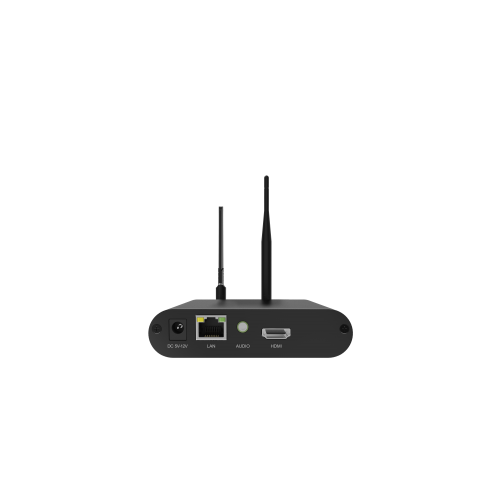

A2K is a new-generation cloud
networking player that supports 4K H265/H264 hardware decoding and 1080P HD
output. Based on the powerful Colorlight cloud service platform, it provides
functions such as device monitoring, program producing, program scheduling,
program centralized publishing, and multi-level management.
A2K player supports 4G, WiFi, wired network and other various networking methods, and can be deployed rapidly to achieve intelligent cloud management function, and multi-screen, multi-business and cross-regional unified management. It also supports using the PlayerMaster software for editing and publishing programs, arbitrarily laying out multiple windows, and playing various materials such as videos, pictures, texts, sheets, weather and clock. It can widely apply to various commercial LCD display fields, such as the screen of chain stores, retail stores and advertisement players.l High-definition output of 1080P
l
Multi-level management of cloud server
and role-based program publishing
l
Strong processing performance,
supporting H265/H264 4K high-definition video hardware decoding and playback
l
Dual band WiFi, with stable connection
and fast transmission rates, supporting configuration of WiFi Station or WiFi
AP
l
32GB storage
l
Multiple playback modes
•
USB drive plug and play, and program update via USB drive
•
Synchronous playback of multiple screens
•
Program and command schedules
l Windows
and materials
•
Multiple program pages (up to 32 pages)
•
Rich media materials, such as pictures, videos, texts and
clocks, supporting video and picture scaling
•
Playback and overlay of multiple windows, whose size and
location can be freely adjusted
•
Support playing up to two high-definition windows or one
4K video window simultaneously
l Comprehensive
control scheme
Support control and management from various platforms,
such as LED Assistant for smartphones and tablets, and PlayerMaster for PC.
l Network
communication
•
Dual band and dual mode WiFi, supporting WiFi 2.4G and 5G
band, WiFi hotspot mode or WiFi client mode[1]
•
LAN, supporting DHCP mode and static mode
•
4G communication, supporting 4G network in various
countries (optional)
•
GPS positioning (optional)
|
Basic Parameters |
|
|
Hardware Quality |
4K high-definition hardware
decoding playback |
|
Storage |
32GB (25G for content) |
|
RAM |
2GB |
|
HDMI Output |
1080P HD output |
|
OS |
Android OS 9.0 (Android Pie) |
|
Physical Parameters |
|
|
Unboxed |
108×128×26mm(4.25×5.04×1.02 inch) |
|
Boxed |
370×320×52mm(14.57×12.60×2.05 inch) |
|
Operating Voltage |
DC 5V-12V |
|
Power Adapter |
AC 100~240V 50/60Hz |
|
Maximum Power Consumption |
15W |
|
Weight |
0.33kg (11.64 oz) |
|
Operating Temperature |
-40℃～80℃ (-40℉~176℉) |
|
Ambient Humidity |
0-95%, non-condensing |
|
Packing List |
• A2K player×1 • Power Adapter×1 • USB cable×1 • WiFi Antenna & Extension
Cord×1 • User Manual×1 • Warranty Card×1 • Certificate×1 |
|
File Format |
|
|
Program Schedule |
Scheduled playback of programs |
|
Program Split |
Flexible window split, window
overlapping, and multiple pages in a program |
|
Video Formats |
HEVC (H.265), H.264, MPEG-4
Part 2, Motion JPEG |
|
Audio Formats |
AAC-LC, HE-AAC, HE-AAC v2, MP3,
Linear PCM |
|
Image Formats |
Bmp, jpg, png, gif, webp, etc. |
|
Text Formats |
Txt, rtf, word, ppt, excel,
etc. |
|
Text Display |
Single-line text, multi-line
text, static text and scrolling text |
|
Multi-window Display |
Up to 4 video windows (support
only one HD window when there are 4 video windows), multiple pictures/texts,
scrolling texts, scrolling pictures, LOGO, date/time/week and weather
forecast windows. Flexible content display in different areas. |
|
Window Overlapping |
Arbitrary overlapping with
fully transparent, opaque and translucent effects |
