Overview

H2F is a new generation of fiber converter that is designed for small pitch LED display.

l  It has small size and light weight, can be easily installed inside or on the back of the LED tiles.

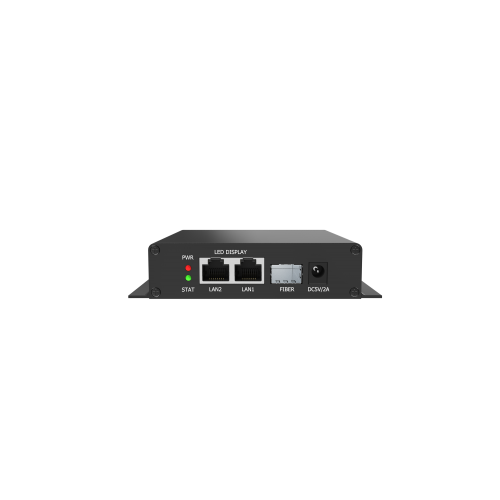

l  All interfaces are located on the one side of box, which is convenient for users to connect cables.

l  It has the advantages of long transmission distance, high working stability, supporting photoelectric bidirectional conversion, and can be widely used in television, data center, monitoring center and other fields.

Features

•     1x 2.5G optical fiber port, with a transmission rate of up to 2.5Gb/s.

•     Single mode twin-core fiber.

•     Multi-source package with duplex LC connector.

•     Equipped with 2.5G single mode optical module of 2km transmission distance.

•     Hot-pluggable.

•     High synchronization and stability for LED display.

•     Distributed-feedback laser (DFB-LD).

•     Eye safety designed to meet laser class 1.
