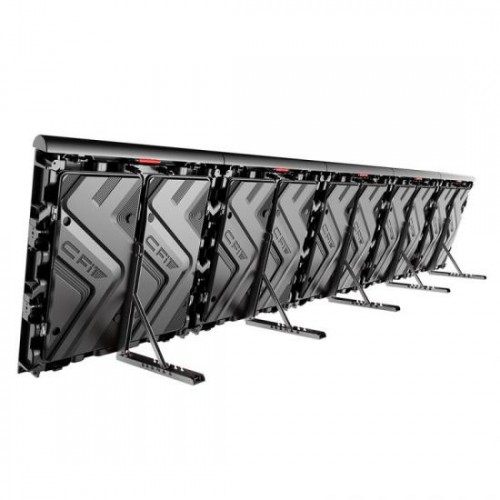

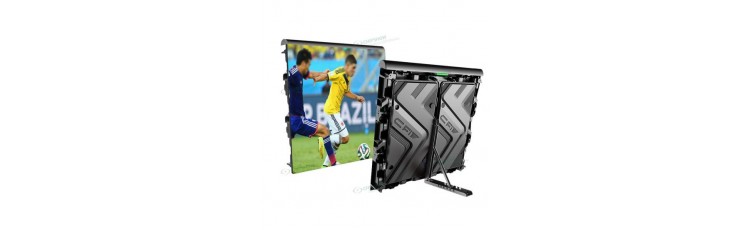

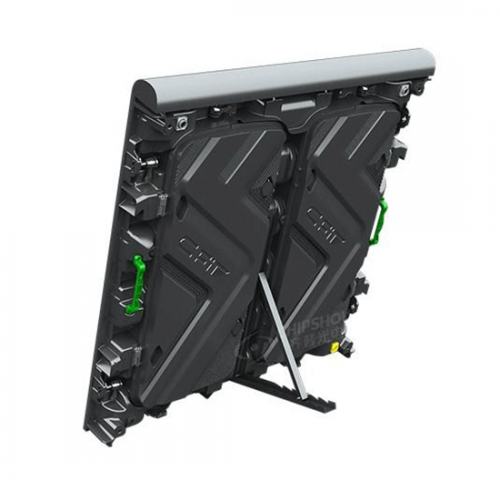

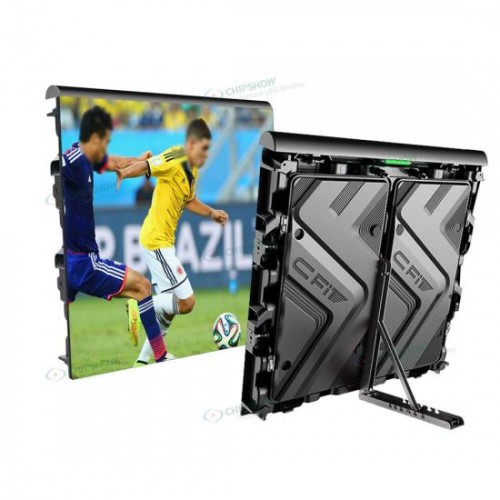

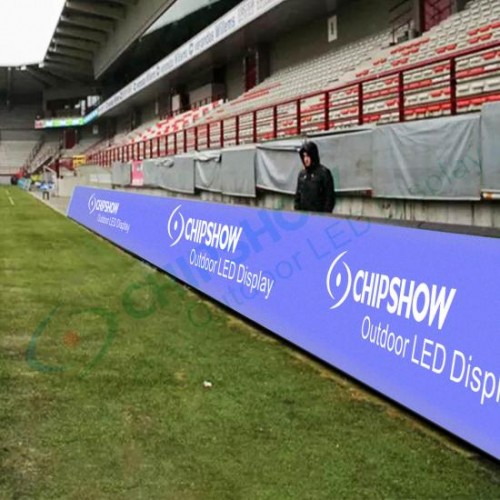

C-Fit-Sport P8,10 Stadium Perimeter LED Display
P8,P10 C-Fit-Sport LED display adopt virtual replacement technology. Virtual ads could be transmitted to different countries instead of the real ads in stadium.
Advantages:
1. Intelligent perimeter LED display.
2. Virtual replacement technology, powered by IR LED.
3. Fast Installation and maintenance cabinet design.
4. Soft protection kit design to protect players from harm.
5. Negative pressure heat-dissipation system, further guarantees the reliability.
6. Available for remote monitoring by App.Item No.:
C-Fit-Sport
Virtual Replacement Technology
The ads seen on the stadium's perimrter LED display during broadcast coverage was completely different to that in the stadium and different in each targeted territory.
RGB & IR 4in1 encapsulation LED
It uses the special LED lamp which can emit infrared rays, has an IPX6 waterproof rating, wide viewing angle, perfect color consistency, and high reliability. This LED lamp is a special 4in1 encapsulation design that RGB and IR chips are encapsulated together. It looks like a regular SMD2727 LED lamp which emits visible RGB light, but it also emits infrared rays of wavelength in the range of 760nm-1mm which is invisible to eye.
Positioned by the infrared cameras
Each pixel is an infrared source, the infrared rays display area can be positioned by the infrared cameras, and the image edge recognition technology is used to determine the position of the perimeter displays in the moving lens
Virtual content management
Virtual content management can cover the infrared rays display area with the different virtual ads through video
processors, and these virtual ads could be transmitted to different countries instead of the real ads
Front Maintenance
If any problem happened during the game, it could be resolved in seconds
Soft Protection Kit Design
It can ensure player's safety when player hit against on the display.
Efficient Cooling System
Double flow negative pressure cooling system and heat-dissipating technologies in the outdoor cabinets
Remote Monitoring By App
Avaiable for remote monitoring by App: Running hours, Humidity and Temperature inner cabinet, individual LED detection, stastus of power supplies, modules, cables, etc.
Specifications
Product
C-Fit-Sport
Pixel Pitch
8, 10mm
Cabinet size
960*960mm
Brightness
≤5800nit
Color temperature
6000~8000K
Refresh frequency
1920~3840HZ
Working temperature
-20~50℃
Protection grade
IP65/IP54
P8,P10 C-Fit-Sport LED display adopt virtual replacement technology. Virtual ads could be transmitted to different countries instead of the real ads in stadium.
Advantages:
1. Intelligent perimeter LED display.2. Virtual replacement technology, powered by IR LED.
3. Fast Installation and maintenance cabinet design.
4. Soft protection kit design to protect players from harm.
5. Negative pressure heat-dissipation system, further guarantees the reliability.
6. Available for remote monitoring by App.
Item No.:
C-Fit-Sport
Virtual Replacement Technology
The ads seen on the stadium's perimrter LED display during broadcast coverage was completely different to that in the stadium and different in each targeted territory.
RGB & IR 4in1 encapsulation LED
It uses the special LED lamp which can emit infrared rays, has an IPX6 waterproof rating, wide viewing angle, perfect color consistency, and high reliability. This LED lamp is a special 4in1 encapsulation design that RGB and IR chips are encapsulated together. It looks like a regular SMD2727 LED lamp which emits visible RGB light, but it also emits infrared rays of wavelength in the range of 760nm-1mm which is invisible to eye.
Positioned by the infrared cameras
Virtual content management
Virtual content management can cover the infrared rays display area with the different virtual ads through video
processors, and these virtual ads could be transmitted to different countries instead of the real ads
Front Maintenance
If any problem happened during the game, it could be resolved in seconds
Soft Protection Kit Design
It can ensure player's safety when player hit against on the display.
Efficient Cooling System
Double flow negative pressure cooling system and heat-dissipating technologies in the outdoor cabinets
Remote Monitoring By App
Avaiable for remote monitoring by App: Running hours, Humidity and Temperature inner cabinet, individual LED detection, stastus of power supplies, modules, cables, etc.
Specifications
Product | C-Fit-Sport |
Pixel Pitch | 8, 10mm |
Cabinet size | 960*960mm |
Brightness | ≤5800nit |
Color temperature | 6000~8000K |
Refresh frequency | 1920~3840HZ |
Working temperature | -20~50℃ |
Protection grade | IP65/IP54 |
C-Fit-Sport
- Brand: Chipshow
- Product Code: C-Fit-Sport
- Availability: In Stock
-
$2,100.00
- Ex Tax: $2,100.00
