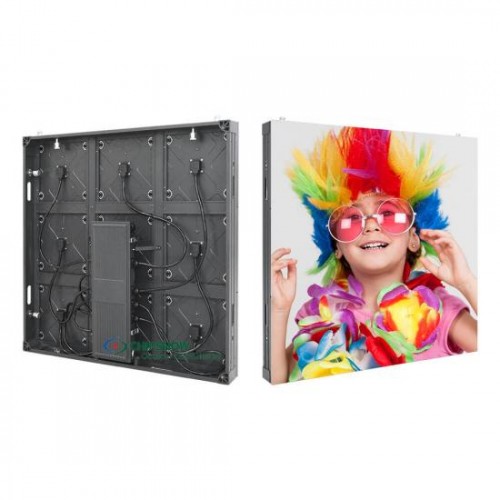

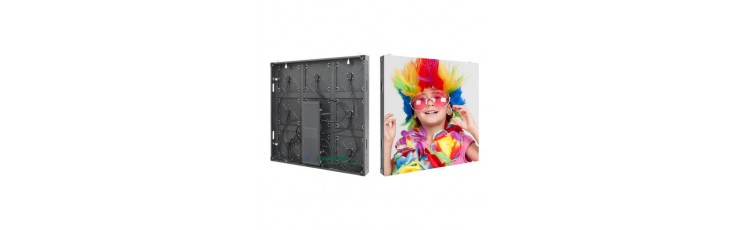

C-Alloy P4.71,6.67 Outdoor High-end Advertising LED Display
C-Alloy is a high-end outdoor fixed LED display with efficient heat dissipation, fast maintenance and installation, as well as high protection grade.
Features
1. Efficient heat dissipation: die-casting integrated molding, efficient heat dissipation groove design, large heat dissipation area, high heat conduction efficiency, and more stable performance.
2. Fast maintenance: quick assembly and disassembly without screws, supporting power on plug in and out. The module is equipped with a two-in-one waterproof connector, which can be quickly replaced in 10 seconds, convenient and fast.
3. Wall-mounted installation: modules and power boxes can be independently installed, disassembled and maintained from the front.
4. High protection: fully sealed module and power box, excellent sealing effect, the module itself reaches IP65 protection grade; anti-wind, rain and salt spray.
Application
suitable for outdoor advertising in shopping malls, office buildings, stadiums, highway, etc.
Item No.:
C-Alloy
Efficient heat dissipation
die-casting integrated molding, efficient heat dissipation groove design, large heat dissipation area, high heat conduction efficiency, and more stable performance
Fast maintenance
The module is equipped with a two-in-one waterproof connector, which can be quickly replaced in 10 seconds, convenient and fast
High protection
fully sealed module and power box, excellent sealing effect, the module itself reaches IP65 protection grade
Good weather resistance anti-wind, rain and salt spray, which can be used in harsh environments such as deserts and seaside
Specifications
Product C-Alloy Module
Module dot pitch
4.71,6.67mm
Module size
320*320mm
Pixel structure
1R1G1B
LED packaging method
SMD1921
Cabinet Cabinet material
Cast aluminum and profiles
Cabinet size
960*960mm
Module arrangement
3*3
Weight
30Kg
White balance brightness
5500 CD/㎡
Color temperature
6500K-8000K
Viewing angle
H/V:120°/120°
Flatness
＜0.4mm
Module gap
＜0.4mm
Maximum power consumption
800W/㎡
Average power consumption
240W/㎡
Refresh frequency
1920Hz
Grayscale/color
14bit
Working temperature
-20℃-+50℃
IP rating
IP65
C-Alloy is a high-end outdoor fixed LED display with efficient heat dissipation, fast maintenance and installation, as well as high protection grade.
Features
1. Efficient heat dissipation: die-casting integrated molding, efficient heat dissipation groove design, large heat dissipation area, high heat conduction efficiency, and more stable performance.
2. Fast maintenance: quick assembly and disassembly without screws, supporting power on plug in and out. The module is equipped with a two-in-one waterproof connector, which can be quickly replaced in 10 seconds, convenient and fast.
3. Wall-mounted installation: modules and power boxes can be independently installed, disassembled and maintained from the front.
4. High protection: fully sealed module and power box, excellent sealing effect, the module itself reaches IP65 protection grade; anti-wind, rain and salt spray.
Application
suitable for outdoor advertising in shopping malls, office buildings, stadiums, highway, etc.
Item No.:
C-Alloy
Efficient heat dissipation
die-casting integrated molding, efficient heat dissipation groove design, large heat dissipation area, high heat conduction efficiency, and more stable performance
Fast maintenance
The module is equipped with a two-in-one waterproof connector, which can be quickly replaced in 10 seconds, convenient and fast
High protection
fully sealed module and power box, excellent sealing effect, the module itself reaches IP65 protection grade
anti-wind, rain and salt spray, which can be used in harsh environments such as deserts and seaside
Specifications
| Product | C-Alloy |
| Module | |
Module dot pitch | 4.71,6.67mm |
Module size | 320*320mm |
Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 |
| Cabinet | |
Cabinet material | Cast aluminum and profiles |
Cabinet size | 960*960mm |
Module arrangement | 3*3 |
Weight | 30Kg |
White balance brightness | 5500 CD/㎡ |
Color temperature | 6500K-8000K |
Viewing angle | H/V:120°/120° |
Flatness | ＜0.4mm |
Module gap | ＜0.4mm |
Maximum power consumption | 800W/㎡ |
Average power consumption | 240W/㎡ |
Refresh frequency | 1920Hz |
Grayscale/color | 14bit |
Working temperature | -20℃-+50℃ |
IP rating | IP65 |
